1. Connection Instructions
| Step 1: Confirm the readiness of the computer and mobile device | |
(1) Please first enable the dictation function on the computer. (2) If the PenPowerAI Jr. APP is not yet installed on your phone, click the 【Not Installed】 button on the screen and follow the instructions in Step 2 to install it. (3) If the PenPowerAI Jr. APP is already installed on your phone, click the 【Installed】 button on the screen and follow the instructions in Step 3 to connect. | |

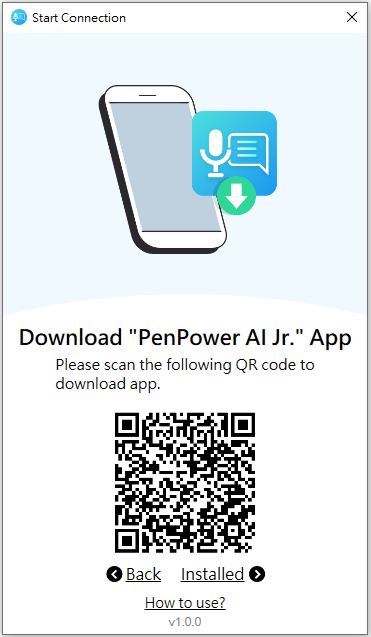

| Step 2: Install the PenPowerAI Jr. APP | |
Note: If the screen does not automatically redirect to the connection QR code, please click the 【Installed】 button to access it. | |

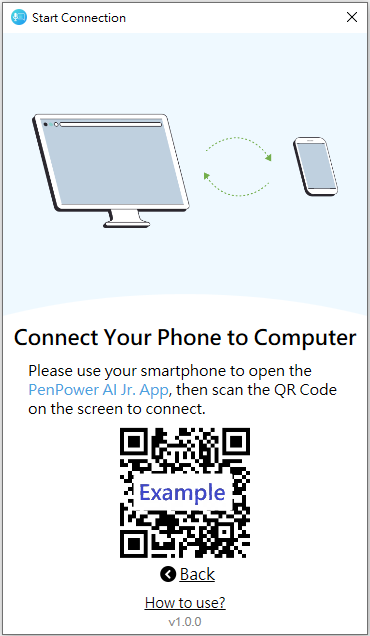

| Step 3: Connect the mobile device and computer | |
Open the PenPower AI Jr. APP on your phone and use the in-app scanning function to scan the connection QR code displayed on the screen. When the message “Ready” appears in the mobile app, the connection is successful and you can start using the features. | The QR code is for illustrative purposes only. The actual display is subject to the software interface. |

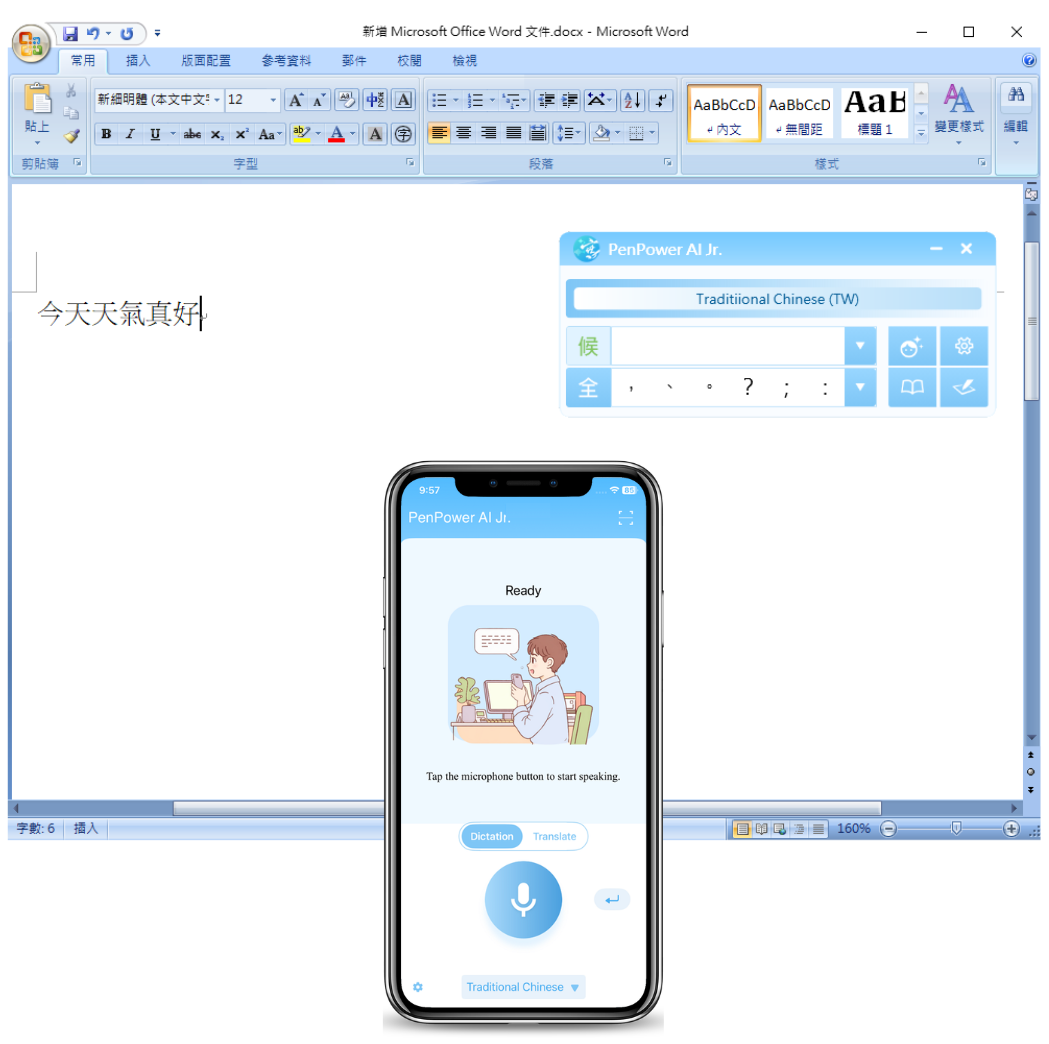

2. Start Voice Input
- Please ensure that the PenPower AI Jr. mobile APP is successfully connected to the computer software, and open the application where you want to input text (e.g., Microsoft Word). Place the cursor in the desired input area.
- In the mobile APP, select either 【Dictation】 or 【Translation】 mode, and set the language for recognition or translation. Tap the
(Microphone) button to start speaking into the phone’s microphone. The system will convert speech into text in real time and temporarily display it on the computer screen.
- Tap the
(Microphone) button again to stop voice input. After recognition is completed, the content will undergo AI correction or translation and will be automatically sent to the input area of the text editor.
If you wish to modify the recognized text, you can use the handwriting pad to rewrite it.
